Gaugemaster DCC90 Ruby Series 2fn Standard DCC Decoder 8 Pin

Product Info

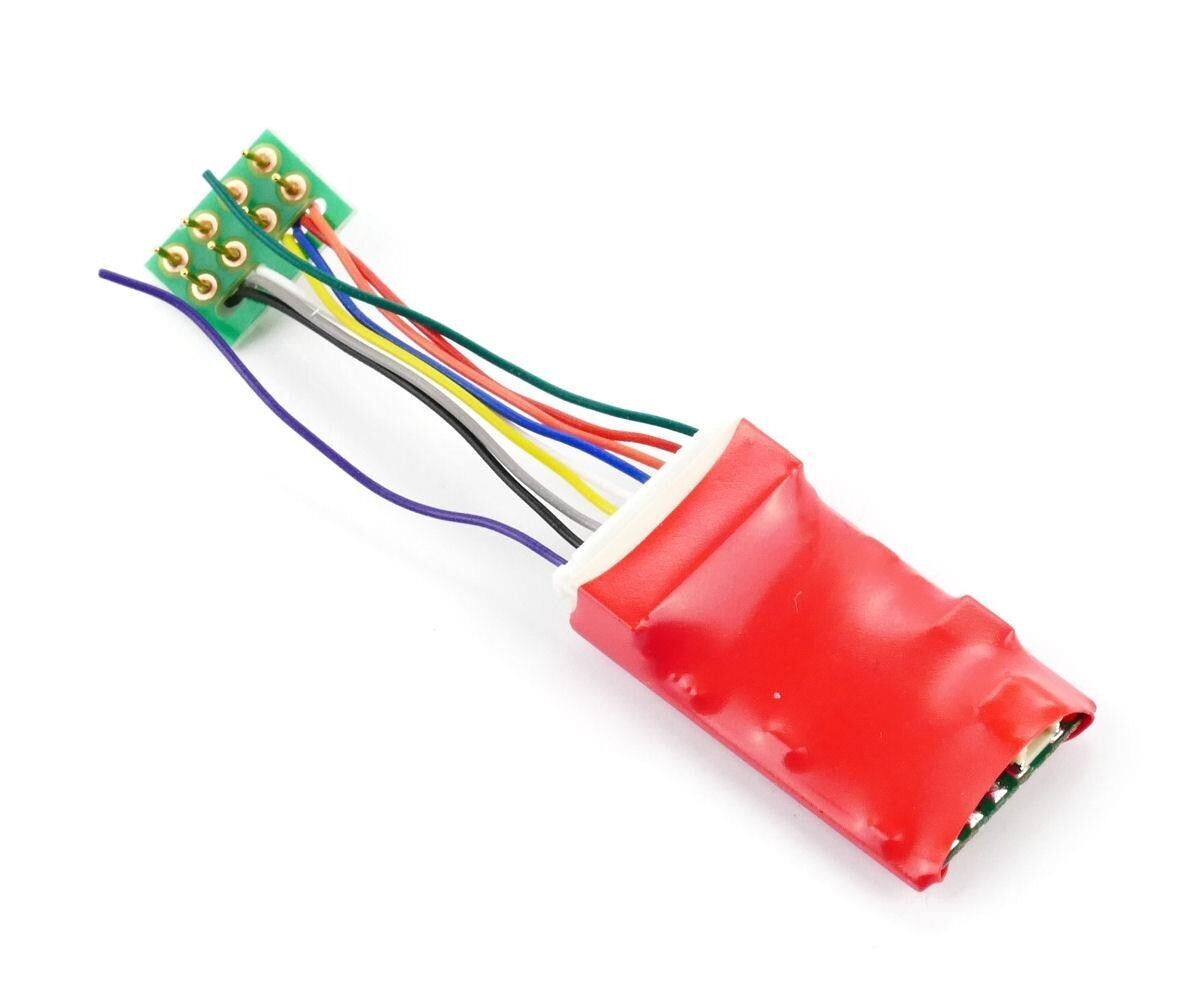

The DCC90 is a large 8 pin decoder which is fitted with a removable 25mm harness including 2 function wires. Fitted in the decoder is a small 2 pin socket which can have the PowerPal inserted into it (sold seperately), This helps keep the locomotive moving in dirty or dead track sections.

FEATURES

2 Digit and 4 Digit Addressing

14, 28 or 128 Speed Steps

Smooth Operation

Constant Brightness Lighting

Direct Mode Programming

Motor Isolation Protection

Advanced Consisting

Socket to Add PowerPal

SPECIFICATIONS

NO. OF PINS 8

NO. OF FUNCTIONS 6

SPEED STEPS 14, 28 or 128

CURRENT RATING 0.5A

MOTOR CURRENT RATING 1.5A - 2.0A Max

MEASUREMENTS

LENGTH 27mm

WIDTH 17mm

THICKNESS 7mm

HARNESS LENGTH 25mm

Brand New & Sealed In Original Packaging
